Surface mount standard LED emitter, red illumination, featuring a 635nm wavelength and 640nm peak. This component operates with a 20mA forward current, delivering 11mcd luminous intensity. Encased in a 0805 (2012 metric) SMD package, it offers a wide 140° viewing angle and a diffused, colorless lens. Operating temperature range is -25°C to 80°C, with lead-free and RoHS compliance.
Package0805
MountingSurface Mount
Quick Jump:
Technical Specifications
Lumex SML-LXT0805IW-TR technical specifications.
General
Approvals
UL, CSA
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Color
Red
Forward Current
20mA
Height
0.8mm
Illumination Color
Red
Lead Free
Lead Free
Length
2mm
Lens Color
White
Lens Size
1.25mm
Lens Style
Flat, Rectangular, Diffused, Colorless
Lens Transparency
Diffused
Luminous Intensity
11mcd
Max Operating Temperature
80°C
Min Operating Temperature
-25°C
Mount
Surface Mount
Number of LEDs
1
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Viewing Angle
140°
Wavelength
635nm
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Lumex SML-LXT0805IW-TR Datasheet
Download the complete datasheet for Lumex SML-LXT0805IW-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

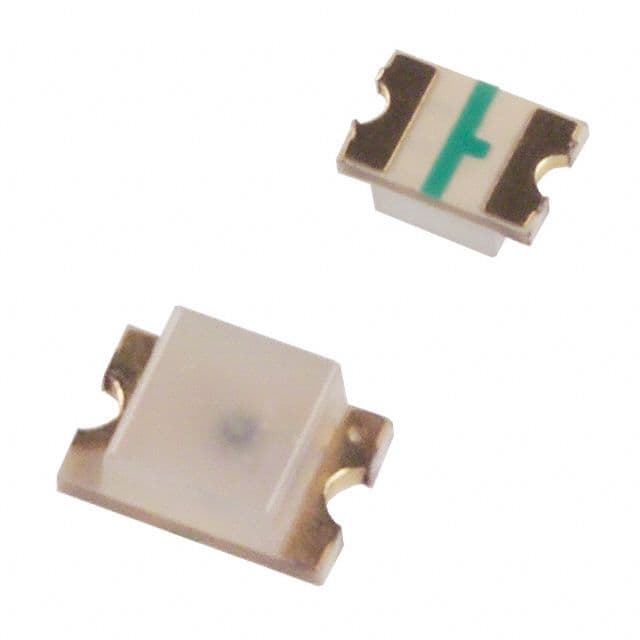

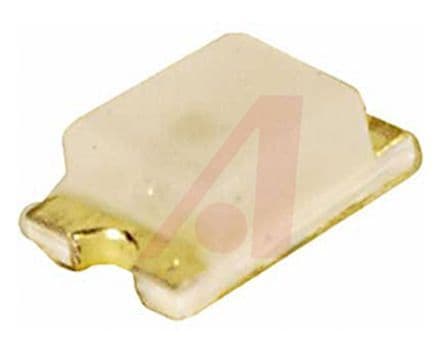

Product Images
