Technical Specifications
Lumex SSF-LXH103YD technical specifications.
General
| Color | Yellow |
| Diameter | 3mm |
| Forward Current | 20mA |
| Height | 7.4mm |
| Illumination Color | Yellow |
| Lead Free | Lead Free |
| Lens Color | Yellow |
| Lens Size | 3mm |
| Lens Style | Diffused, Tinted, Round, Domed, Colored |
| Luminous Intensity | 30mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of LEDs | 1 |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 105mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Viewing Angle | 60° |
| Voltage Rating | 2.1V |
| Wavelength | 585nm |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Lumex SSF-LXH103YD Datasheet
Download the complete datasheet for Lumex SSF-LXH103YD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

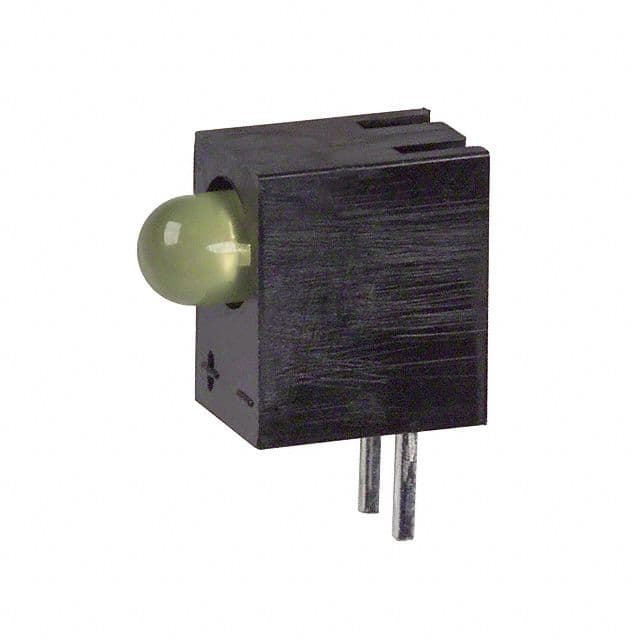

Product Images
