Green LED panel mount indicator featuring a 5mm diffused, domed lens and 2-pin termination. Emitting a 565nm wavelength green light with a luminous intensity of 30mcd at a 2.2V forward voltage and 25mA current. This component offers a 60° viewing angle and operates within a temperature range of -40°C to 85°C. Designed for through-hole panel mounting with a 5mm diameter and 15mm height.
PackageT
Voltage2.2V
Current25mA
MountingThrough Hole, Panel
Quick Jump:
Technical Specifications
Lumex SSI-LXR4815GD technical specifications.
General
Package/Case
T
Color
Green
Current
25mA
Diameter
5mm
Forward Current
25mA
Height
15mm
Illumination Color
Green
Lead Free
Lead Free
Lens Color
Green
Lens Size
5mm
Lens Style
Round, Domed, Rectangular, Diffused, Colored
Lens Transparency
Diffused
Luminous Intensity
30mcd
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, Panel
Number of Contacts
2
Number of LEDs
1
Operating Supply Voltage
2.2V
Package Quantity
100
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Wire
Viewing Angle
60°
Voltage
2.2V
Wavelength
565nm
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Lumex SSI-LXR4815GD Datasheet
Download the complete datasheet for Lumex SSI-LXR4815GD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

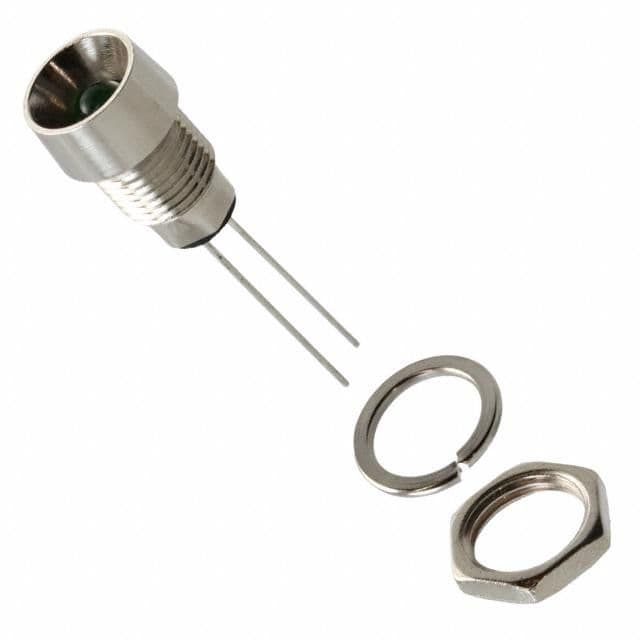

Product Images
