Technical Specifications

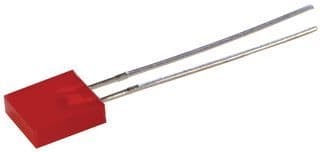

Lumex SSL-LX25783ID technical specifications.
General
| Package/Case | Radial |
| Color | Red |
| Forward Current | 20mA |
| Height | 8mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Lens Color | Red |
| Lens Size | 2.3mm |
| Lens Style | Flat, Rectangular, Diffused, Colored |
| Lens Transparency | Diffused |
| Luminous Intensity | 9mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of LEDs | 1 |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 80° |
| Wavelength | 635nm |
Compliance
| RoHS | Compliant |
Datasheet
Lumex SSL-LX25783ID Datasheet
Download the complete datasheet for Lumex SSL-LX25783ID to view detailed technical specifications.
