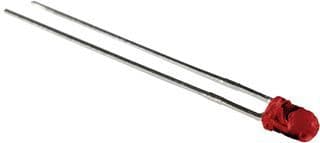

SSL-LX3044ID-5V

Single Color LED, Red, Red Diffused, T-1, 3mm,

PackageRadial

MountingThrough Hole

Quick Jump:

Lumex SSL-LX3044ID-5V technical specifications.

Package/Case	Radial
Color	Red

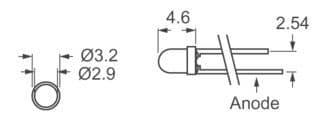

Diameter	3mm
Height	4.6mm
Illumination Color	Red
Lead Free	Lead Free
Lens Color	Red
Lens Size	3mm
Lens Style	Round, Domed, Dome, Diffused, Colored
Lens Transparency	Diffused
Luminous Intensity	6mcd
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Mount	Through Hole
Number of LEDs	1
Package Quantity	1000
Packaging	Bulk
Reach SVHC Compliant	No
RoHS Compliant	Yes
Viewing Angle	60°
Wavelength	635nm
