Technical Specifications
Lumex SSL-LX5093ID technical specifications.
General
| Package/Case | Radial |
| Color | Red |
| Diameter | 0.232inch |
| Forward Current | 30mA |
| Height | 8.6mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Lens Color | Red |
| Lens Style | Dome, Round, Diffused, Colored |
| Lens Transparency | Diffused |
| Luminous Intensity | 40mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of LEDs | 1 |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 105mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Viewing Angle | 60° |
| Wavelength | 635nm |
Compliance
| RoHS | Compliant |
Datasheet
Lumex SSL-LX5093ID Datasheet
Download the complete datasheet for Lumex SSL-LX5093ID to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

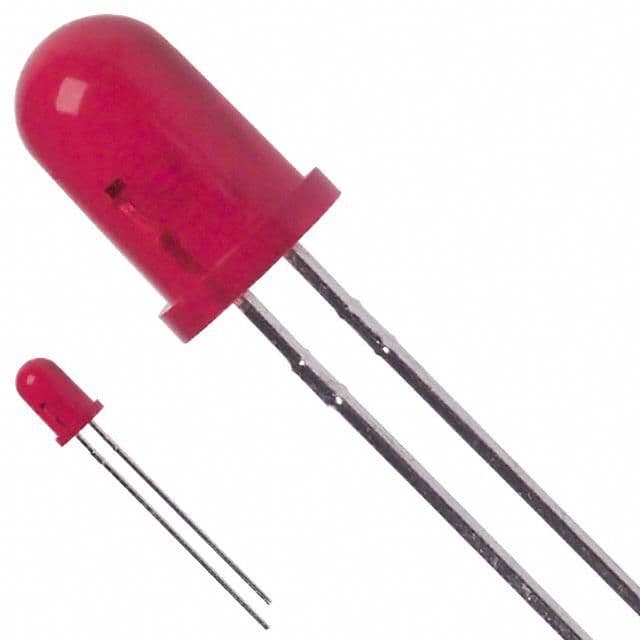

Product Images
