Marquardt
1006.1511
Switch Snap Action N.O./N.C. SPDT Roller Lever 10A 400VAC 186.42VA 1.25N Screw Mount Quick Connect
Package125
MountingBrackets
Quick Jump:
Technical Specifications
Marquardt 1006.1511 technical specifications.
General
Actuator Type
ROLLER LEVER
Package/Case
125
Contact Current Rating
10A
Contact Material
Silver
Contact Type
1 change-over
Height
16mm
Length
10.3mm
Max Operating Temperature
100°C
Mechanical Life
5000000Cycles
Min Operating Temperature
-40°C
Mount
Brackets
Operating Force
1.25N
Package Quantity
200
Series
1005
Termination
Tab
Throw Configuration
SPDT
Width
28mm
Compliance
RoHS
Compliant
Datasheet
Marquardt 1006.1511 Datasheet
Download the complete datasheet for Marquardt 1006.1511 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

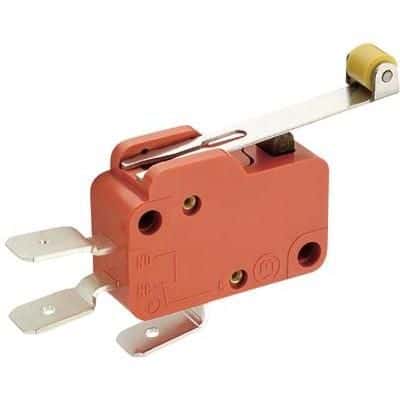

Product Images
