Package100
Current Rating100mA
MountingPCB
Quick Jump:
Technical Specifications
Marquardt 6425.4111 technical specifications.
General
Package/Case
100
Contact Material
Gold
Contact Plating
Gold
Contact Type
1 maker
Current Rating
100mA
Flammability Rating
UL94 HB
Height
10.7mm
Illumination Color
Red
Illumination Type
Illuminated
Lead Free
Lead Free
Length
14.8mm
Material
Plastic
Mount
PCB
Number of Positions
2
Series
6425
Switching Voltage
28V
Termination
Solder
Throw Configuration
SP
DC Rated Voltage
28V
Width
13.5mm
Compliance
RoHS
Compliant
Datasheet
Marquardt 6425.4111 Datasheet
Download the complete datasheet for Marquardt 6425.4111 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

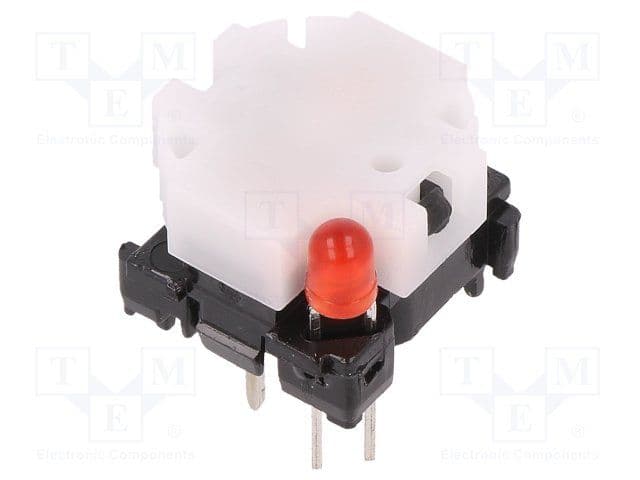

Product Images
