Capacitance50pF
Current Rating6A
MountingThrough Hole
Quick Jump:
Technical Specifications
MCC GBU6J-BP technical specifications.
General
Average Rectified Current
6A
Capacitance
50pF
Current Rating
6A
Forward Current
6A
Height
18.8mm
Lead Free
Lead Free
Length
22.3mm
Max Forward Surge Current (Ifsm)
175A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
5uA
Max Reverse Leakage Current
5uA
Max Surge Current
175A
Mount
Through Hole
Number of Elements
1
Output Current
6A
Package Quantity
1000
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
175A
RoHS Compliant
Yes
DC Rated Voltage
600V
Width
3.56mm
Compliance
RoHS
Compliant
Datasheet
MCC GBU6J-BP Datasheet
Download the complete datasheet for MCC GBU6J-BP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

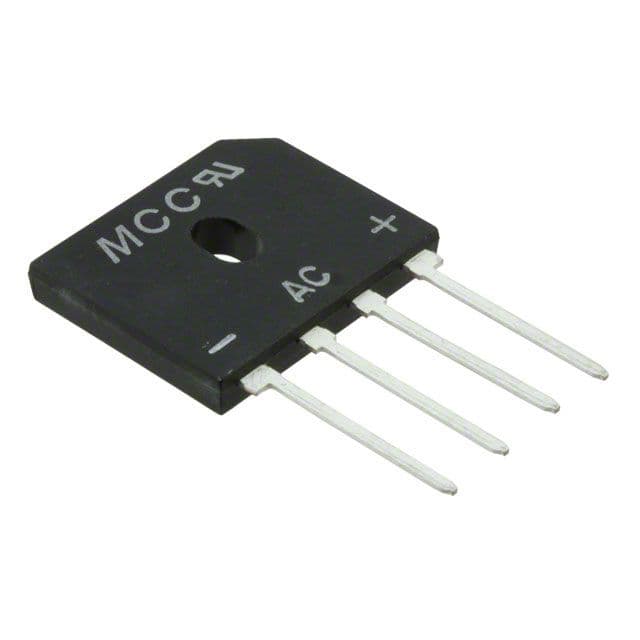

Product Images
