6W Plug-In AC/DC Power Supply, 7.5V fixed output voltage, 800mA maximum output current. Features 72% efficiency, 0°C to 40°C operating temperature range, and a 2-pole EURO plug. Approvals include EN, CE, and CB. Dimensions: 66mm L x 32mm W x 62.5mm D.
MountingPlug-In
PolarityPositive
Quick Jump:
Technical Specifications
Mean Well GS06E-11P1J technical specifications.
General
Approvals
EN, CE, CB
Current - Output 1
800mA
Depth
62.5mm
Efficiency
72%
Height
1.7inch
Length
66mm
Max Input Current
200mA
Max Operating Temperature
40°C
Min Operating Temperature
0°C
Max Output Current
800mA
Max Output Power
6W
Mount
Plug-In
Number of Outputs
1
Output Connector
P1J
Output Current
800mA
Output Type
Fixed
Output Voltage
7.5V
Package Quantity
90
Packaging
Carton
Polarity
Positive
Series
GS06E
Voltage - Output 1
7.5V
Weight
100g
Width
32mm
Compliance
RoHS
Compliant
Datasheet
Mean Well GS06E-11P1J Datasheet
Download the complete datasheet for Mean Well GS06E-11P1J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

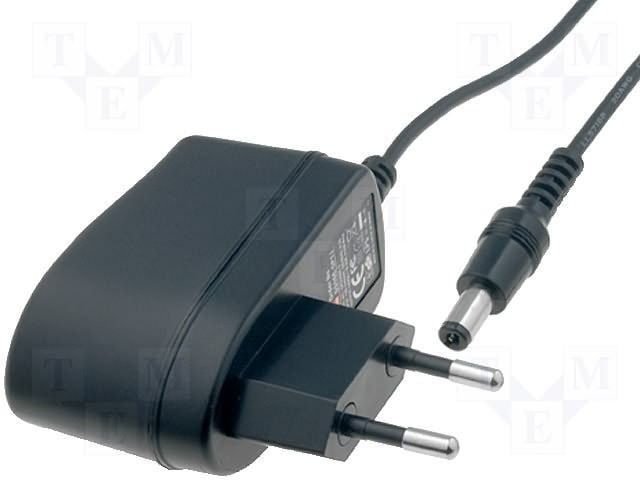

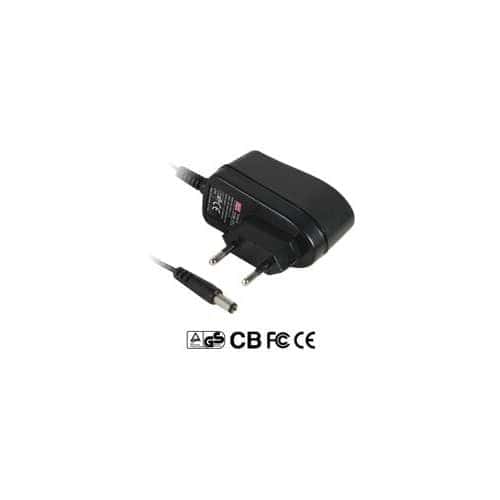

Product Images
