36W AC to DC switching power supply, single output, 12V at 3A. Features universal input, 86% efficiency, and a desktop mount. Operating temperature range of -25°C to 60°C. Approvals include UL, CE, TUV, and CB.
Package100
MountingDesktop
PolarityPositive
Power36W
Quick Jump:
Technical Specifications
Mean Well GSM36B12-P1J technical specifications.
General
Approvals
UL, CE, TUV, CB
Package/Case
100
Current - Output 1
3A
Depth
54mm
Efficiency
86%
Height
1.3inch
Length
3.1inch
Max Input Current
900mA
Max Operating Temperature
60°C
Min Operating Temperature
-25°C
Max Output Power
36W
Mount
Desktop
Number of Outputs
1
Output Current
3A
Output Power
36W
Output Type
Fixed
Output Voltage
12V
Overall Depth
33mm
Package Quantity
60
Packaging
Bulk
Polarity
Positive
Regulator Type
UNIVERSAL
Series
GSM36B
Voltage - Output 1
12V
Weight
8.289381oz
Width
2.1inch
Compliance
RoHS
Compliant
Datasheet
Mean Well GSM36B12-P1J Datasheet
Download the complete datasheet for Mean Well GSM36B12-P1J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

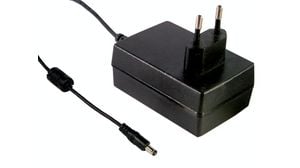

Product Images
