Board mount DC/DC converter offering 193W maximum output power. Features four regulated outputs: 5V, 12V, -5V, and -12V, with corresponding output currents of 15A, 7A, 2A, and 2A respectively. Operates from -20°C to 70°C with 78% efficiency. Approvals include UL, TUV, and EN, with RoHS compliance. Dimensions: 177.8mm (L) x 107.2mm (W) x 35.5mm (D).
Package200
MountingDesktop
Quick Jump:
Technical Specifications
Mean Well MPQ-200B technical specifications.
General
Approvals
UL, TUV, EN
Package/Case
200
Current - Output 1
15A
Current - Output 2
7A
Current - Output 3
2A
Depth
35.5mm
Efficiency
78%
Height
1.4inch
Length
177.8mm
Max Input Current
3.5A
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Output Power
193W
Mount
Desktop
Number of Outputs
4
Output Current
15A
Output Voltage
12V
Package Quantity
24
RoHS Compliant
Yes
Series
MPQ-200
Voltage - Output 1
5V
Voltage - Output 2
12V
Voltage - Output 3
-5V
Voltage - Output 4
-12V
Weight
0.66kg
Width
107.2mm
Compliance
RoHS
Compliant
Datasheet
Mean Well MPQ-200B Datasheet
Download the complete datasheet for Mean Well MPQ-200B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

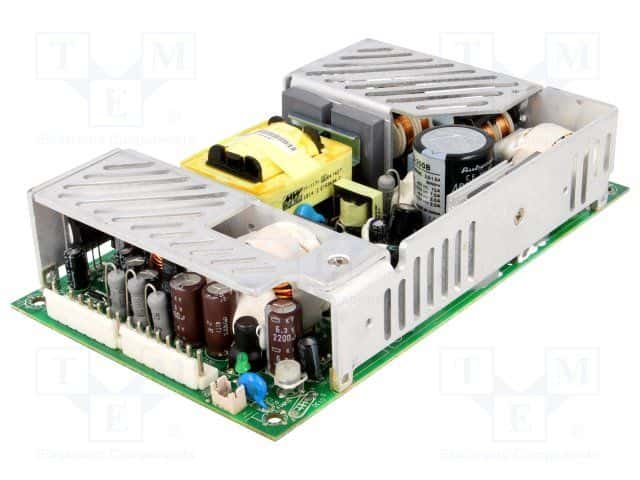

Product Images
