Mega
3204935

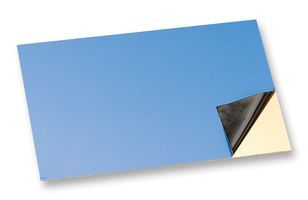

PCB, FR4, 233.4X160, SS; Board Type:Prototype Board; Board Material:Epoxy Glass Composite; Hole Diameter:-; External Height:160mm; External Width:233.4mm; Board Thickness:1.6mm; Product Range:-; SVHC:No SVHC (15-Jun-2015); Copper Coating Density:305 g/m sq; Copper Thickness:0.035; External Length / Height:160mm; Height:160mm; Material:FR4 Epoxy Glass
PackageEpoxy
MountingExternal
Quick Jump:
Technical Specifications
Mega 3204935 technical specifications.
General
| Board Thickness | 1.6mm |
| Package/Case | Epoxy |
| Height | 160mm |
| Material | Glass, Epoxy |
| Mount | External |
| Width | 233.4mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Mega 3204935 Datasheet
Download the complete datasheet for Mega 3204935 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

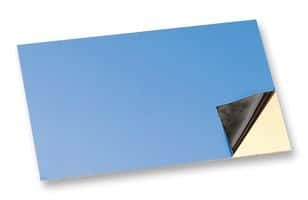

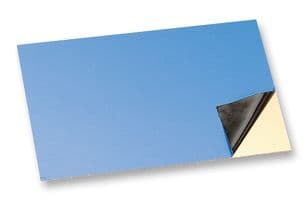

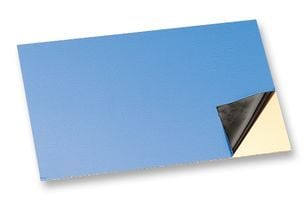

Product Images
