The AT24C02N-10SC-2.7 is a 2Kb 2-wire EEPROM from Microchip, featuring an access time of 900ns and a maximum frequency of 100kHz. It operates within a temperature range of 0°C to 70°C and is supplied with a voltage of 5V. The device is packaged in a SOIC case and is suitable for surface mount applications.
Frequency400kHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT24C02N-10SC-2.7 technical specifications.
General
| Access Time | 900ns |
| Package/Case | SOIC |
| Frequency | 400kHz |
| Interface | 2-Wire |
| Lead Free | Contains Lead |
| Max Frequency | 100kHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 2Kb |
| Memory Type | Non-Volatile, , EEPROM |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Organization | 256 x 8 |
| RoHS Compliant | No |
Compliance
| RoHS | Not Compliant |
Datasheet
Microchip AT24C02N-10SC-2.7 Datasheet
Download the complete datasheet for Microchip AT24C02N-10SC-2.7 to view detailed technical specifications.
No datasheet is available for this part.

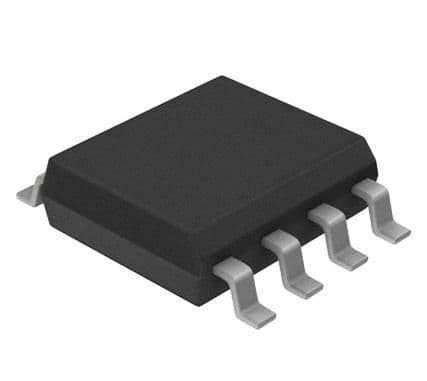

Product Images
