Microchip
AT24C1024BN-SH-B
ATMEL AT24C1024BN-SH-B EEPROM, 1 Mbit, 128K x 8bit, 1 MHz, Serial, SOIC, 8 Pins
Frequency1MHz
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT24C1024BN-SH-B technical specifications.
General
Access Time
550ns
Access Time-Max
900ns
Package/Case
SOIC
Density
1Mb
Frequency
1MHz
Height
1.5mm
Interface
2-Wire, I2C, Serial
Length
5.05mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
1Mb
Memory Type
EEPROM, , Non-Volatile
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Words
131072
Operating Supply Voltage
3.3V
Organization
128KX8
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Width
3.99mm
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip AT24C1024BN-SH-B Datasheet
Download the complete datasheet for Microchip AT24C1024BN-SH-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

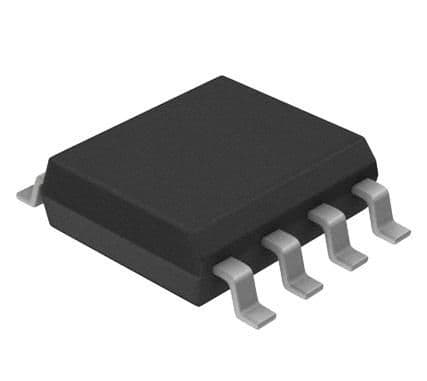

Product Images
