Frequency150MHz
PackageLBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT32AP7000-CTUT technical specifications.
General
Package/Case
LBGA
Core Architecture
AVR
Data Bus Width
32b
Frequency
150MHz
Height
0.81mm
Interface
SPI, USB, 2-Wire, I2C, Ethernet, MMC, UART, USART, EBI/EMI
Lead Free
Lead Free
Length
17mm
Max Frequency
150MHz
Max Operating Temperature
85°C
Memory Size
32KB
Memory Type
FLASH, ROMless,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Ethernet Channels
2
Number of I/Os
160
Number of I2C Channels
1
Number of Programmable I/O
160
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
4
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
450
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, LCD
RAM Size
32KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR®32 AP7
Termination
SMD/SMT
Width
17mm
Compliance
RoHS
Compliant
Datasheet
Microchip AT32AP7000-CTUT Datasheet
Download the complete datasheet for Microchip AT32AP7000-CTUT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

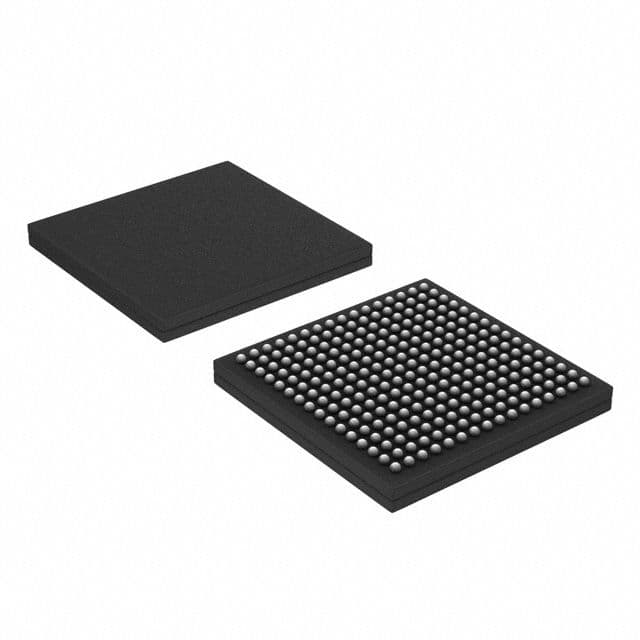

Product Images
