Frequency16MHz
PackageSO
Voltage5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT90PWM316-16SU technical specifications.
General
Package/Case
SO
Core Architecture
AVR
Data Bus Width
8b
Frequency
16MHz
Interface
SPI, UART, USART
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
105°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
27
Number of Programmable I/O
53
Number of PWM Channels
12
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
828
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AVR® 90PWM Lighting
Voltage
5V
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip AT90PWM316-16SU Datasheet
Download the complete datasheet for Microchip AT90PWM316-16SU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

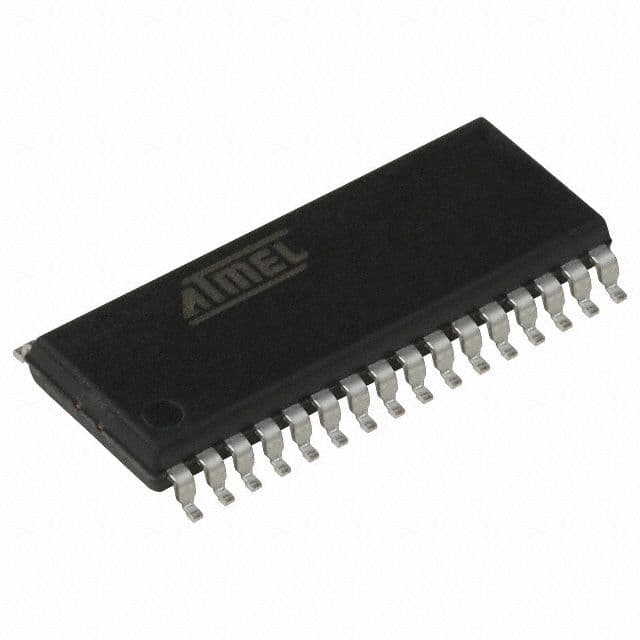

Product Images
