Frequency36MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT91SAM7L128-AU technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Density
128KB
Frequency
36MHz
Height
1.45mm
Interface
SPI, USART, 2-Wire, I2C, UART
Length
20mm
Max Frequency
36MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of ADC Channels
4
Number of I/Os
80
Number of I2C Channels
1
Number of Programmable I/O
80
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
72
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD, DMA
Radiation Hardening
No
RAM Size
6KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SAM7L
Termination
SMD/SMT
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Microchip AT91SAM7L128-AU Datasheet
Download the complete datasheet for Microchip AT91SAM7L128-AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

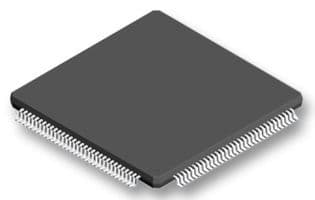

Product Images
