Microchip
AT91SAM7S512-AU
ATMEL AT91SAM7S512-AU 32 Bit Microcontroller, ARM7TDMI, 55 MHz, 512 KB, 64 KB, 64 Pins, LQFP
Frequency55MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip AT91SAM7S512-AU technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Density
512KB
Frequency
55MHz
Interface
SPI, UART, I2C, USB, USART
Length
10mm
Max Frequency
30MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of Bits
32
Number of I/Os
32
Number of Programmable I/O
32
Number of PWM Channels
4
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
64KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SAM7S
Compliance
RoHS
Compliant
Datasheet
Microchip AT91SAM7S512-AU Datasheet
Download the complete datasheet for Microchip AT91SAM7S512-AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

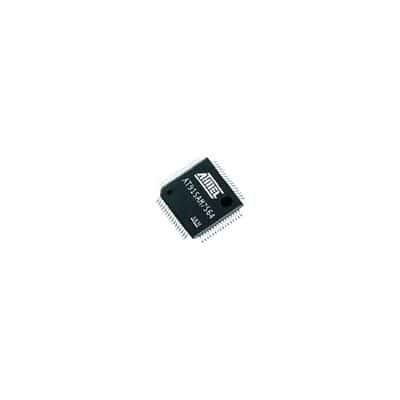

Product Images
