Technical Specifications
Microchip ATF16V8B-10JC technical specifications.
General
Access Time
10ns
Package/Case
J
Lead Free
Contains Lead
Max Frequency
74MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Number of I/Os
8
Number of Macrocells
8
Operating Supply Current
55mA
Operating Supply Voltage
5V
Package Quantity
48
Packaging
Rail/Tube
Propagation Delay
10ns
RoHS Compliant
No
Series
16V8
Weight
0.025468oz
Compliance
RoHS
Not Compliant
Datasheet
Microchip ATF16V8B-10JC Datasheet
Download the complete datasheet for Microchip ATF16V8B-10JC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

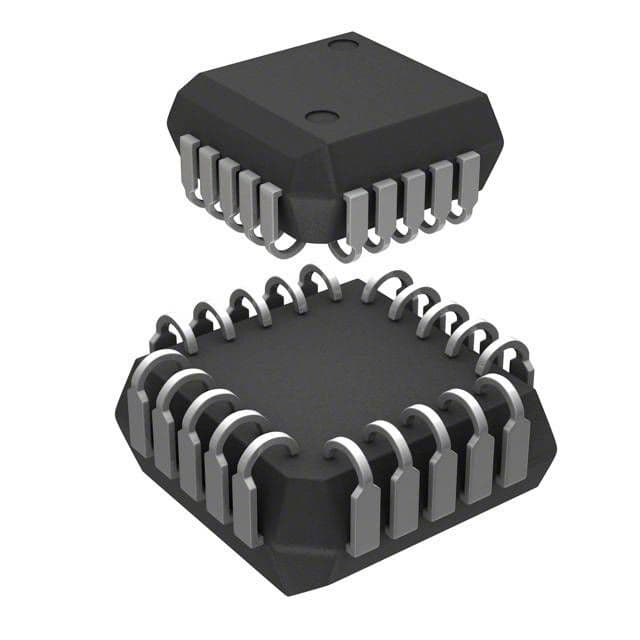

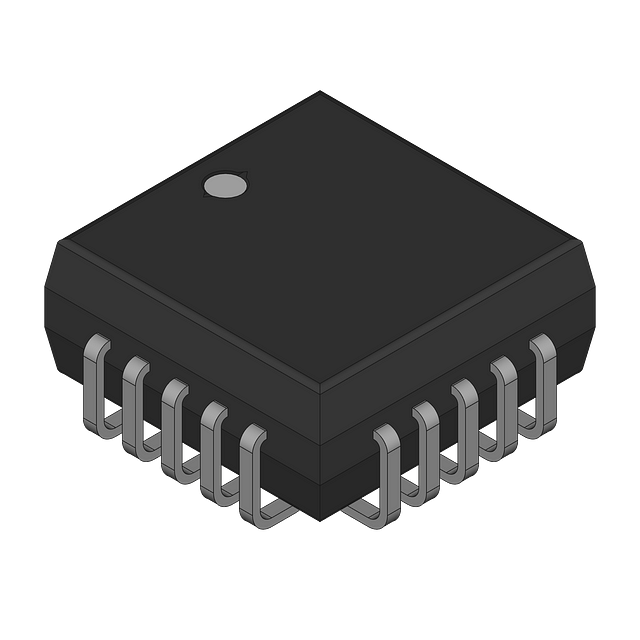

Product Images
