Frequency8MHz
PackageA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA645V-8AUR technical specifications.
General
| Package/Case | A |
| Contact Plating | Tin, Matte |
| Core Architecture | AVR |
| Data Bus Width | 8b |
| Frequency | 8MHz |
| Interface | SPI, UART, USART |
| Max Frequency | 8MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 64KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of I/Os | 53 |
| Number of Programmable I/O | 54 |
| Number of Timers/Counters | 3 |
| Oscillator Type | Internal |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 4KB |
| RoHS Compliant | Yes |
| Series | AVR® ATmega |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATMEGA645V-8AUR Datasheet
Download the complete datasheet for Microchip ATMEGA645V-8AUR to view detailed technical specifications.
No datasheet is available for this part.

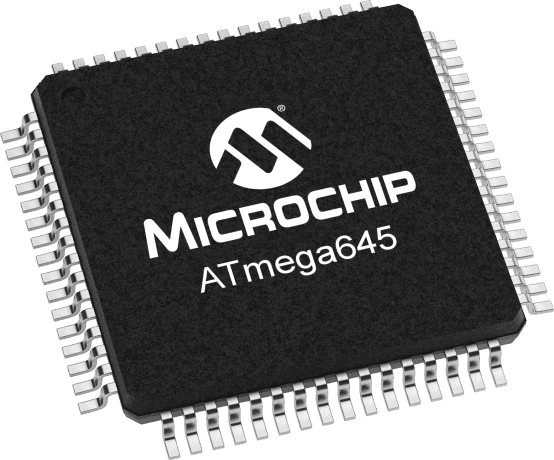

Product Images
