The ATMEGA8535L-8JC is an 8-bit AVR microcontroller with a core architecture of AVR and a data bus width of 8 bits. It operates at a maximum frequency of 8MHz and has a maximum supply voltage of 5.5V. The device is packaged in a surface mount J package and has 32 programmable I/Os. It features a range of peripherals including brown-out detect/reset, power-on reset, pulse-width modulation, and a watchdog timer. The microcontroller is designed to operate within a temperature range of 0°C to 70°C.
Frequency8MHz
PackageJ
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATMEGA8535L-8JC technical specifications.
General
| Access Time | 8us |
| Package/Case | J |
| Core Architecture | AVR |
| Data Bus Width | 8b |
| Frequency | 8MHz |
| Interface | SPI, USART, 2-Wire, I2C, UART |
| Lead Free | Contains Lead |
| Max Frequency | 8MHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of I/Os | 32 |
| Number of Programmable I/O | 32 |
| Number of Timers/Counters | 3 |
| Oscillator Type | Internal |
| Package Quantity | 27 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 512B |
| RoHS Compliant | No |
| Series | AVR® ATmega |
Compliance
| RoHS | Not Compliant |
Datasheet
Microchip ATMEGA8535L-8JC Datasheet
Download the complete datasheet for Microchip ATMEGA8535L-8JC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

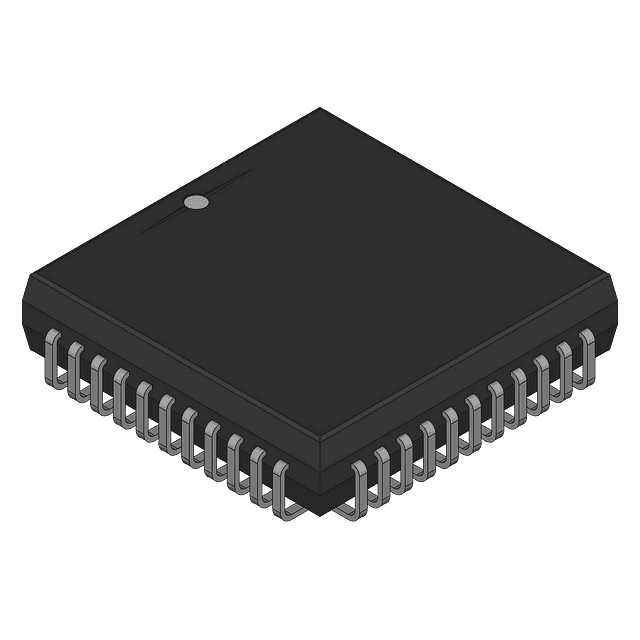

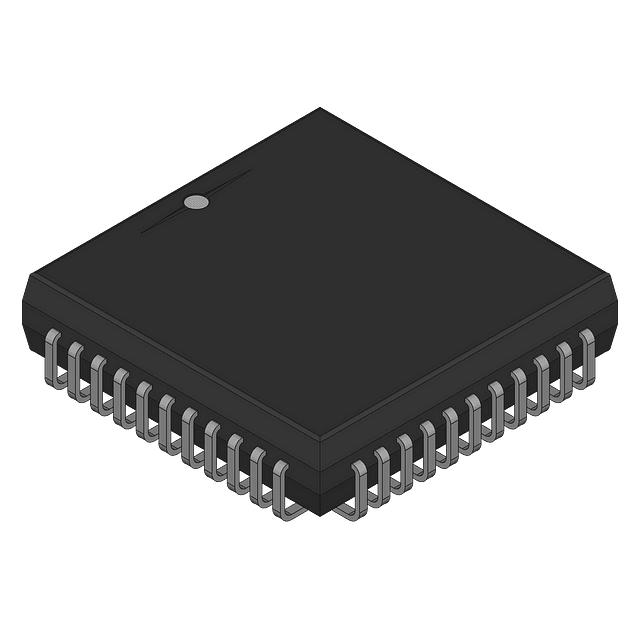

Product Images
