Frequency64MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATSAM3S1CA-AU technical specifications.
General
Address Bus Width
32b
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
64MHz
Height
1.45mm
Interface
SPI, UART, 2-Wire, I2C, USB, MMC, USART, EBI/EMI, I2S
Lead Free
Lead Free
Length
14mm
Max Frequency
64MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.62V
Mount
Surface Mount
Number of ADC Channels
16
Number of I/Os
79
Number of I2C Channels
2
Number of Programmable I/O
79
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
6
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SAM3S
Watchdog Timer
Yes
Width
14mm
Compliance
RoHS
Compliant
Datasheet
Microchip ATSAM3S1CA-AU Datasheet
Download the complete datasheet for Microchip ATSAM3S1CA-AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

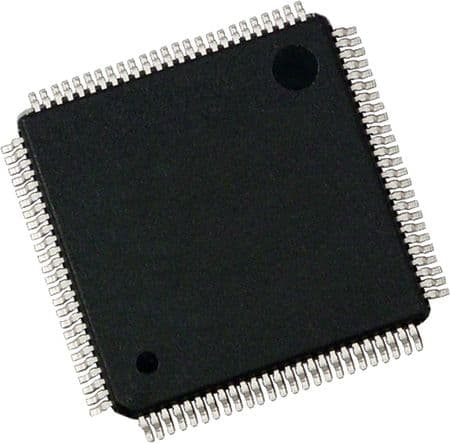

Product Images
