Frequency20MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATTINY261-20MU technical specifications.
General
Access Time
20us
Package/Case
VQFN
Contact Plating
Tin, Matte
Core Architecture
AVR
Data Bus Width
8b
Frequency
20MHz
Interface
SPI, 2-Wire
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
2KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
16
Number of Programmable I/O
16
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
490
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
AVR® ATtiny
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip ATTINY261-20MU Datasheet
Download the complete datasheet for Microchip ATTINY261-20MU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

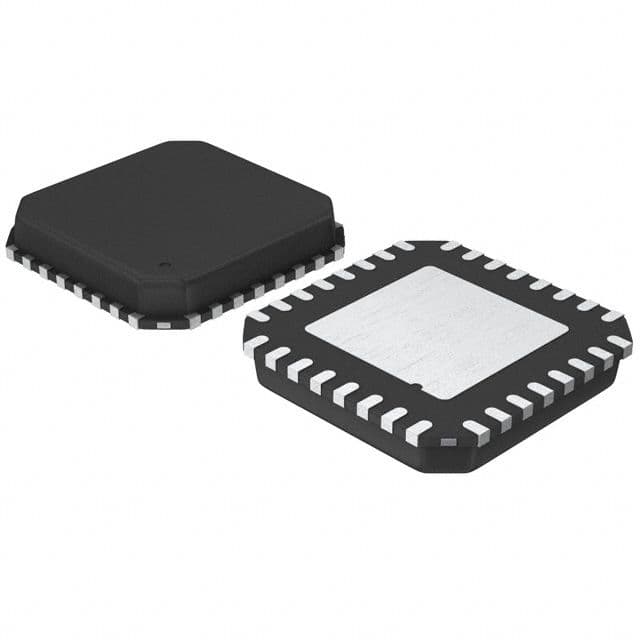

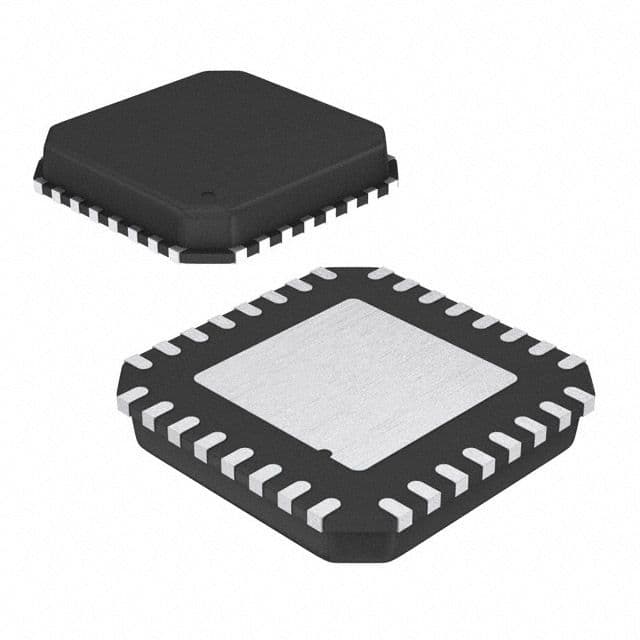

Product Images
