The ATTINY43U-MUR is an 8-bit AVR microcontroller from Microchip. It operates at a maximum frequency of 8MHz and features 4KB of FLASH memory. The device has 16 programmable I/Os and supports the SPI interface. It is available in a surface mount DIP package and is compliant with RoHS regulations. The ATTINY43U-MUR has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C.
Frequency8MHz
PackageDIP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATTINY43U-MUR technical specifications.
General
| Package/Case | DIP |
| Core Architecture | AVR |
| Data Bus Width | 8b |
| Frequency | 8MHz |
| Interface | SPI |
| Max Frequency | 8MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 4KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of I/Os | 16 |
| Number of Programmable I/O | 16 |
| Number of Timers/Counters | 2 |
| Oscillator Type | Internal |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, Temp Sensor |
| RAM Size | 256B |
| RoHS Compliant | Yes |
| Series | AVR® ATtiny |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATTINY43U-MUR Datasheet
Download the complete datasheet for Microchip ATTINY43U-MUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

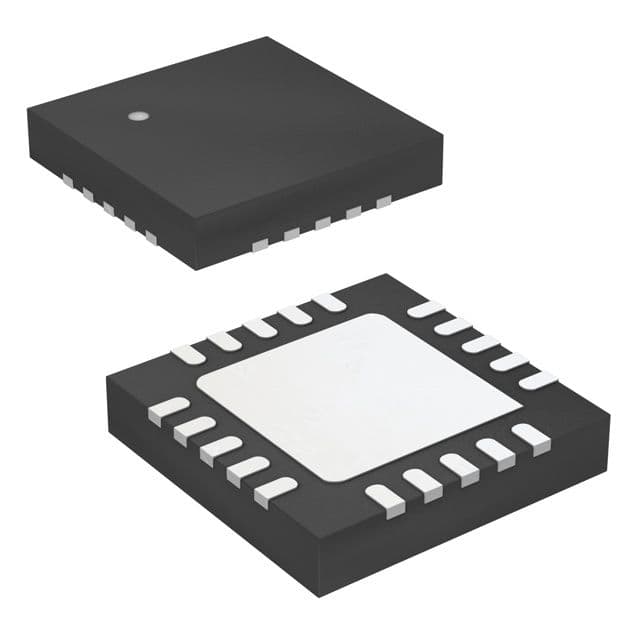

Product Images
