The ATTINY44A-MFR is a 4KB FLASH microcontroller from Microchip, featuring a 20MHz internal oscillator and a QFN package. It operates over a temperature range of -40°C to 125°C and can be supplied with a voltage between 1.8V and 5.5V. The device includes various peripherals such as brown-out detect/reset, power-on reset, pulse-width modulation, and a temperature sensor. It is compliant with RoHS regulations.
Frequency20MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip ATTINY44A-MFR technical specifications.
General
| Package/Case | QFN |
| Frequency | 20MHz |
| Max Operating Temperature | 125°C |
| Memory Size | 4KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Oscillator Type | Internal |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, Temp Sensor |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATTINY44A-MFR Datasheet
Download the complete datasheet for Microchip ATTINY44A-MFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

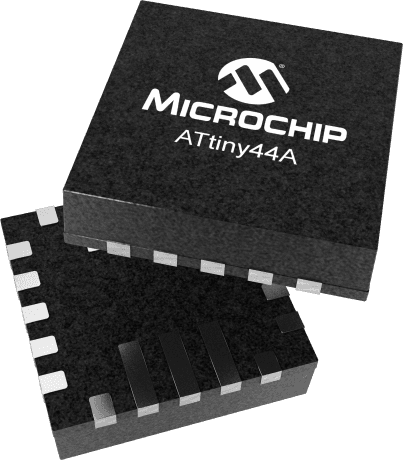

Product Images
