Frequency32MHz
PackageVFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATXMEGA16C4-CUR technical specifications.
General
Package/Case
VFBGA
Contact Plating
Copper, Tin, Silver
Core Architecture
AVR
Data Bus Width
8b
Frequency
32MHz
Interface
SPI, USB, 2-Wire, I2C, IrDA, UART, USART
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
1.6V
Mount
Surface Mount
Number of ADC Channels
16
Number of I/Os
34
Number of Programmable I/O
34
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
1
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
2KB
RoHS Compliant
Yes
Series
AVR® XMEGA
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip ATXMEGA16C4-CUR Datasheet
Download the complete datasheet for Microchip ATXMEGA16C4-CUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

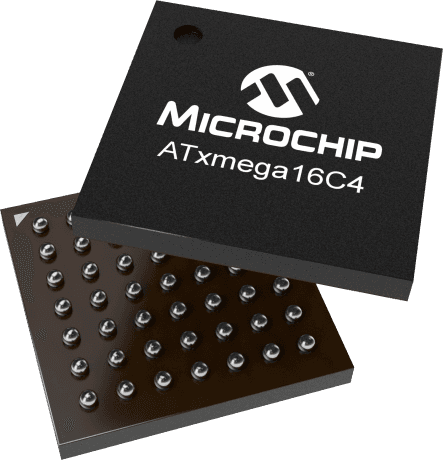

Product Images
