The ATXMEGA64A1-C7U is a high-performance microcontroller featuring a 32MHz AVR core, 64KB of FLASH memory, and 78 I/Os. It supports a range of interfaces, including I2C, SPI, IrDA, UART, USART, and EBI/EMI. The device operates over a temperature range of -40°C to 85°C and is supplied from 1.6V to 3.6V. It is available in a VFBGA package and is RoHS compliant.
Frequency32MHz
PackageVFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ATXMEGA64A1-C7U technical specifications.
General
| Package/Case | VFBGA |
| Core Architecture | AVR |
| Frequency | 32MHz |
| Interface | I2C, SPI, IrDA, UART, USART, EBI/EMI |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 64KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.6V |
| Mount | Surface Mount |
| Number of I/Os | 78 |
| Oscillator Type | Internal |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| RoHS Compliant | Yes |
| Series | AVR® XMEGA® A1 |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ATXMEGA64A1-C7U Datasheet
Download the complete datasheet for Microchip ATXMEGA64A1-C7U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

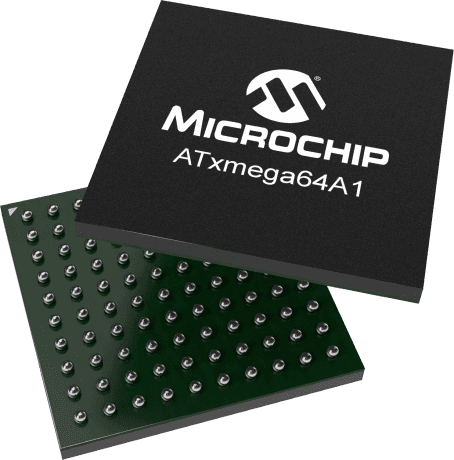

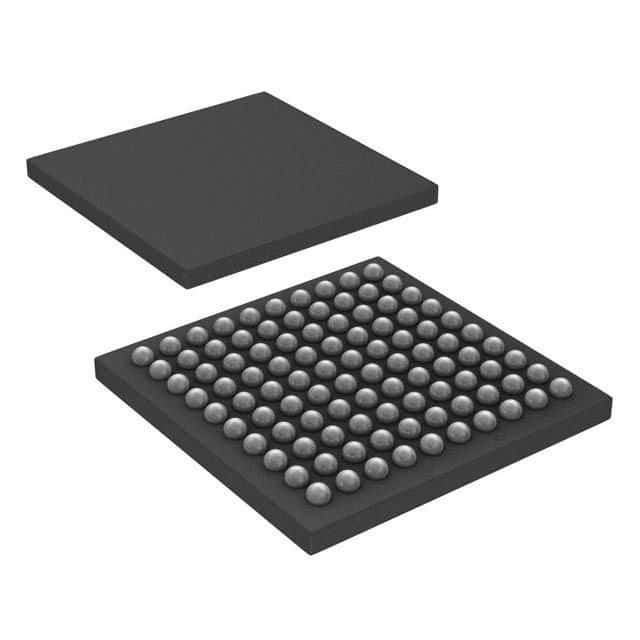

Product Images
