Frequency40MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ64GP202T-I/MM technical specifications.
General
Package/Case
VQFN
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.9V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
21
Number of Programmable I/O
21
Number of Timers/Counters
5
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
Series
dsPIC™ 33F
Watchdog Timer
Yes
Compliance
RoHS
Not CompliantNo
Datasheet
Microchip DSPIC33FJ64GP202T-I/MM Datasheet
Download the complete datasheet for Microchip DSPIC33FJ64GP202T-I/MM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

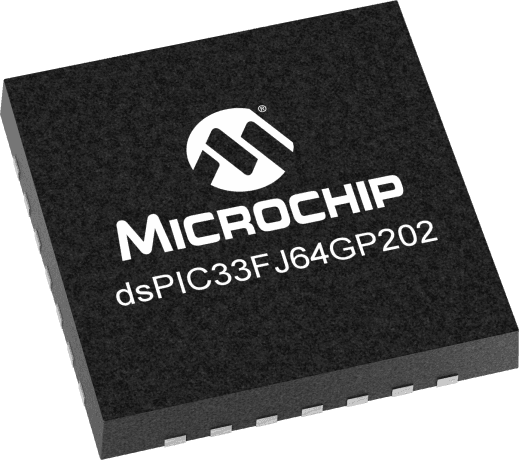

Product Images
