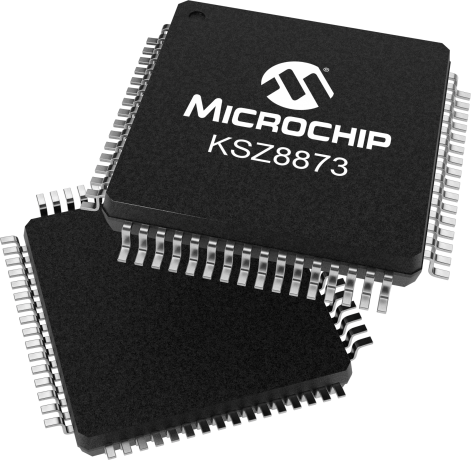

Three-port 100Mbps Ethernet switch featuring I2C and SPI interfaces. This surface mount component operates within a 1.71V to 3.465V supply voltage range, with a nominal 3.3V. It offers 3 functions and 2 transceivers, housed in a 64-pin LQFP package measuring 10mm x 10mm x 1.4mm. The device supports a maximum operating temperature of 70°C and a maximum supply current of 115mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip KSZ8873RLL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LQFP |
| Data Rate | 100Mbps |
| Height | 1.4mm |
| Interface | I2C, SPI |
| Lead Free | Lead Free |
| Length | 10mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 115mA |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 1.71V |
| Mount | Surface Mount |
| Number of Functions | 3 |
| Number of Ports | 3 |
| Number of Transceivers | 2 |
| Operating Supply Current | 115mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 160 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 115mA |
| Supply Voltage-Nom | 3.3V |
| Width | 10mm |
| RoHS | Compliant |
Download the complete datasheet for Microchip KSZ8873RLL to view detailed technical specifications.
