1-channel power supply support circuit with a TO-92 package, featuring a 4.75V overvoltage threshold and a 4.5V undervoltage threshold, ensuring reliable operation within a 1V to 5.5V supply voltage range. This through-hole mounted integrated circuit offers active-low reset functionality with a 150ms reset timeout and a typical supply current of 60uA. Designed for general power management applications, it operates across a wide temperature range of -40°C to 85°C and is RoHS compliant.
PackageTO-92
Current60uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP100-475HI/TO technical specifications.
General
Accuracy
-5%
Package/Case
TO-92
Height
4.62mm
Lead Free
Lead Free
Length
4.71mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
4.75V
Min Reset Threshold Voltage
4.5V
Max Supply Current
60uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Through Hole
Number of Elements
1
Number of Voltages Monitored
1
Operating Supply Current
60uA
Output
TOTEM-POLE
Overvoltage Threshold
4.75V
Package Quantity
1000
Packaging
Bulk
Quiescent Current
45uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
150ms
RoHS Compliant
Yes
Supply Current
60uA
Threshold Voltage
4.625V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
4.5V
Watchdog Timer
No
Width
3.62mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP100-475HI/TO Datasheet
Download the complete datasheet for Microchip MCP100-475HI/TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

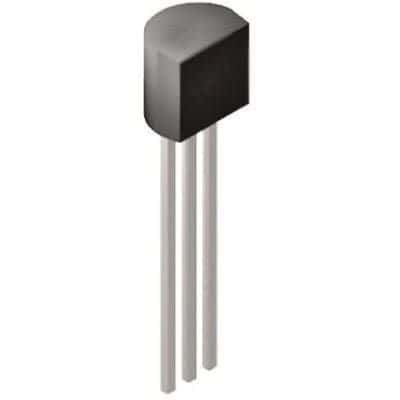

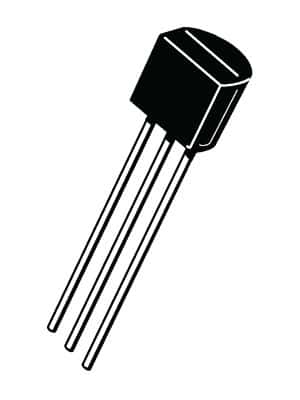

Product Images
