Automotive-grade supervisory circuit with a 4.725V threshold voltage, monitoring a single voltage. Features active-low, push-pull output and a 150ms reset timeout. Operates from 1V to 5.5V supply voltage with a maximum supply current of 60uA. Packaged in a 3-pin TO-92 through-hole mount, this lead-free component is RoHS compliant.
PackageTO-92
Current45uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP100-485DI/TO technical specifications.
General
Package/Case
TO-92
Height
4.62mm
Lead Free
Lead Free
Length
4.71mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
4.85V
Min Reset Threshold Voltage
4.6V
Max Supply Current
60uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Through Hole
Number of Elements
1
Number of Voltages Monitored
1
Operating Supply Current
60uA
Output
TOTEM-POLE
Overvoltage Threshold
4.85V
Package Quantity
1000
Packaging
Bulk
Quiescent Current
45uA
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
150ms
RoHS Compliant
Yes
Supply Current
45uA
Threshold Voltage
4.725V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
4.6V
Watchdog Timer
No
Width
3.62mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP100-485DI/TO Datasheet
Download the complete datasheet for Microchip MCP100-485DI/TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

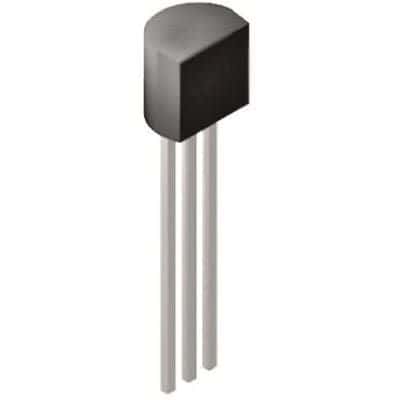

Product Images
