Automotive-grade processor supervisor with a 4.625V threshold voltage, offering precise monitoring with a -5% accuracy. This integrated circuit features a single active-low reset output and operates within a 1V to 5.5V supply voltage range, consuming a maximum of 60uA. Designed for through-hole mounting in a TO-92 package, it supports a wide operating temperature range from -40°C to 85°C. The component includes a 150ms reset timeout and is RoHS compliant.
PackageTO-92
Current60uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip MCP130-475DI/TO technical specifications.
General
Accuracy
-5%
Package/Case
TO-92
Height
4.62mm
Lead Free
Lead Free
Length
4.71mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
4.75V
Min Reset Threshold Voltage
4.5V
Max Supply Current
60uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Through Hole
Number of Elements
1
Number of Voltages Monitored
1
Operating Supply Current
60uA
Overvoltage Threshold
4.75V
Package Quantity
1000
Packaging
Bulk
Quiescent Current
45uA
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
150ms
RoHS Compliant
Yes
Supply Current
60uA
Threshold Voltage
4.625V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
4.5V
Watchdog Timer
No
Width
3.62mm
Compliance
RoHS
Compliant
Datasheet
Microchip MCP130-475DI/TO Datasheet
Download the complete datasheet for Microchip MCP130-475DI/TO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

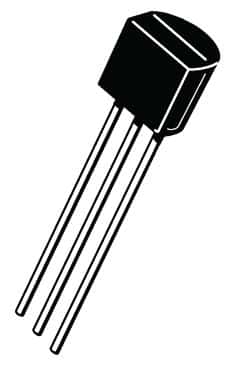

Product Images
