PackageTO-247-3
Current Rating9A
MountingThrough Hole
Quick Jump:
Technical Specifications
Microsemi APT9M100B technical specifications.
General
Package/Case
TO-247-3
Continuous Drain Current (ID)
9A
Current Rating
9A
Drain to Source Voltage (Vdss)
1kV
Fall Time
10ns
Gate to Source Voltage (Vgs)
30V
Input Capacitance
2.605nF
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
335W
Mount
Through Hole
Packaging
Rail/Tube
Radiation Hardening
No
Rds On Max
1.4R
RoHS Compliant
Yes
Series
POWER MOS 8™
Turn-Off Delay Time
40ns
Turn-On Delay Time
12ns
DC Rated Voltage
1kV
Compliance
RoHS
Compliant
Datasheet
Microsemi APT9M100B Datasheet
Download the complete datasheet for Microsemi APT9M100B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

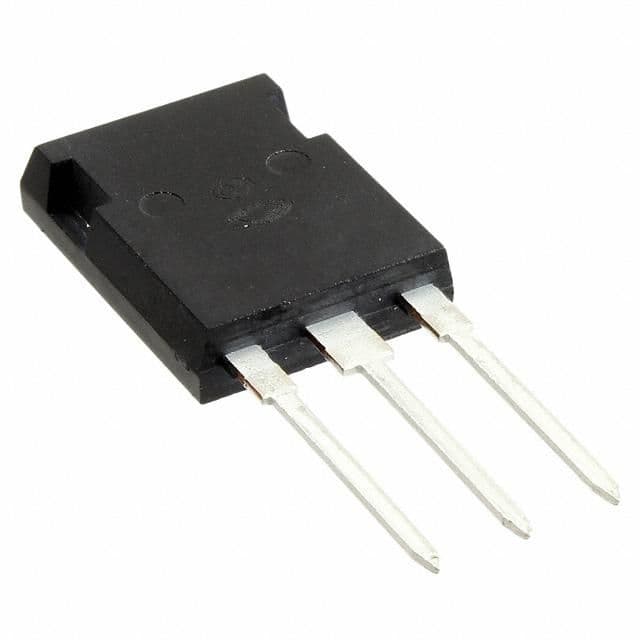

Product Images
