Midas
MC21605B6WD-SPTLY

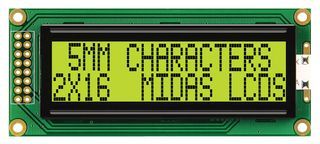

MIDAS MC21605B6WD-SPTLY Alphanumeric LCD, 16 x 2, Black on Yellow / Green, 5 V, Parallel, English / Japanese, Transflective
Voltage Rating5.5V
Current Rating1.5mA
MountingExternal
Quick Jump:
Technical Specifications
Midas MC21605B6WD-SPTLY technical specifications.
General
Backlight Type
LED
Character Width
3mm
Current Rating
1.5mA
Height
13.5mm
Interface
4 bit, Parallel
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Mount
External
Number Of Characters Per Row
16
Operating Supply Voltage
5V
Reach SVHC Compliant
No
Series
B
Viewing Area (height)
16.4mm
Viewing Area (width)
64.5mm
Voltage Rating
5.5V
Width
85mm
Compliance
RoHS
Compliant
Datasheet
Midas MC21605B6WD-SPTLY Datasheet
Download the complete datasheet for Midas MC21605B6WD-SPTLY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
