Technical Specifications

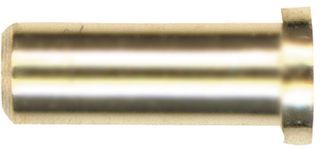

Mill-Max 0327-0-15-01-34-27-10-0 technical specifications.
General
| Body Material | Brass |
| Contact Material | Copper, BERYLLIUM COPPER ALLOY |
| Contact Plating | Gold |
| Current Rating | 8A |
| Depth | 2.31mm |
| Gender | Female |
| Inside Diameter | 1.63mm |
| Lead Free | Contains Lead |
| Length | 5.23mm |
| Max Current Rating | 8A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | PCB |
| Number of Contacts | 1 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | 327 |
| Termination | Solder |
Compliance
| RoHS | Not Compliant |
Datasheet
Mill-Max 0327-0-15-01-34-27-10-0 Datasheet
Download the complete datasheet for Mill-Max 0327-0-15-01-34-27-10-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
