Female signal and power contact with a straight, through-hole termination. Features a brass body and copper contact material with tin/lead plating, and gold plating. Rated for a maximum current of 8A and operates within a temperature range of -55°C to 125°C. Body length is 0.29 inches, with an inside diameter of 0.088 inches and an outside diameter of 0.119 inches. Supplied in bulk packaging with 500 units per package.
Package0355
Quick Jump:
Technical Specifications
Mill-Max 0355-0-15-01-02-01-10-0 technical specifications.
General
| Body Length | 0.29inch |
| Package/Case | 0355 |
| Contact Material | Copper |
| Contact Plating | Tin, Lead |
| Depth | 3mm |
| Gender | Female |
| Inside Diameter | 0.088inch |
| Lead Free | Contains Lead |
| Length | 0.29inch |
| Material | Brass |
| Max Current Rating | 8A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Number of Contacts | 1 |
| Orientation | Straight |
| Outside Diameter | 0.119inch |
| Package Quantity | 500 |
| Packaging | Bulk |
| Plating | Gold |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | 355 |
| Termination | Solder |
Compliance
| RoHS | Not Compliant |
Datasheet
Mill-Max 0355-0-15-01-02-01-10-0 Datasheet
Download the complete datasheet for Mill-Max 0355-0-15-01-02-01-10-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

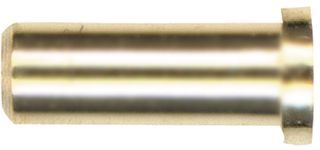

Product Images
