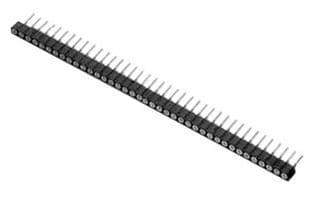

50-position, single-row socket strip with 2mm pitch, designed for through-hole mounting. Features gold-plated copper/brass circular female contacts for reliable mating. Rated for 3A current and operates within a -55°C to 125°C temperature range. The straight, top-entry orientation and polyester insulation contribute to its robust design.
PackageSIP
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Mill-Max 831-43-050-10-001000 technical specifications.
General
| Package/Case | SIP |
| Contact Finish - Mating | GOLD |
| Contact Material | Copper, Brass |
| Contact Plating | Gold |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Current Rating | 3A |
| Depth | 2mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Polyester |
| Lead Free | Lead Free |
| Length | 100mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 50 |
| Number of Positions | 50 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 5 |
| Packaging | Rail/Tube |
| Pitch | 2mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 831 |
| Termination | Solder |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Mill-Max 831-43-050-10-001000 Datasheet
Download the complete datasheet for Mill-Max 831-43-050-10-001000 to view detailed technical specifications.
