Technical Specifications
Molex 0022285020 technical specifications.
General
| Color | Black |
| Contact Material | Brass |
| Contact Mating Length | 0.24inch |
| Contact Plating | Tin |
| Contact Type | Male Pin |
| Depth | 2.49mm |
| Gender | Male |
| Housing Color | Black |
| Length | 5.08mm |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 0.1inch |
| RoHS Compliant | Yes |
| Series | KK® 42375 |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Molex 0022285020 Datasheet
Download the complete datasheet for Molex 0022285020 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

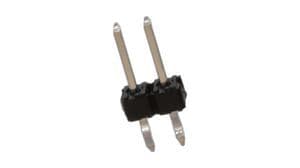

Product Images
