Rectangular power connector featuring 2 contacts with a 3.68mm pitch. This female receptacle offers a 5A current rating and 250V voltage rating, suitable for crimp termination. Designed for free-hanging, cable mounting with a straight orientation, it operates within a -40°C to 105°C temperature range. Approvals include UL, CSA, and TUV, with a UL94 V-2 flammability rating.
Voltage Rating250V
Current Rating5A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 03-06-1023 technical specifications.
General
Approvals
UL, CSA, TUV
Color
Natural
Contact Gender
Female
Contact Type
Male or Female
Current Rating
5A
Depth
20.62mm
Flammability Rating
UL94 V-2
Gender
Female
Glow Wire Compliant
Non-compliant
Height
5.92mm
Housing Color
Natural
Lead Free
Lead Free
Length
11.2mm
Max Current Rating
5A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Free Hanging, Cable
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Operating Supply Voltage
250V
Orientation
Straight
Package Quantity
15000
Packaging
Bulk
Pitch
3.68mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
1625
Termination
Crimp
Voltage Rating
250V
Width
5.92mm
Compliance
RoHS
Compliant
Datasheet
Molex 03-06-1023 Datasheet
Download the complete datasheet for Molex 03-06-1023 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

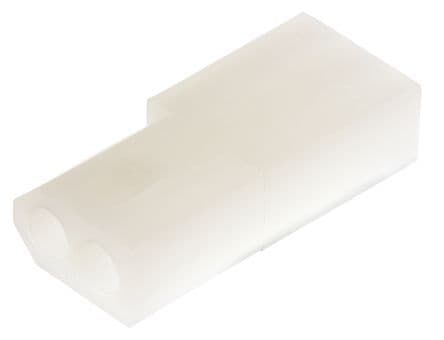

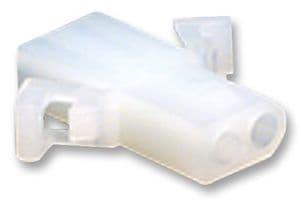

Product Images
