5-position, 1-row flexible flat cable/flexible printed circuit connector with a 3.68mm pitch. Features straight orientation, panel mount, snap-in, and cable mounting options. Rated for 5A current and 250V operating supply voltage, with a temperature range of -40°C to 105°C. Housing color is natural, and it is RoHS compliant.
Current Rating5A
MountingPanel, Snap in, Cable
Quick Jump:
Technical Specifications
Molex 03-06-1055 technical specifications.
General
Approvals
UL, CSA, TUV
Color
Natural
Contact Gender
Female
Contact Type
Male or Female
Current Rating
5A
Depth
19.8mm
Flammability Rating
UL94 V-2
Gender
Female
Glow Wire Compliant
Non-compliant
Housing Color
Natural
Lead Free
Contains Lead
Length
19.7mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Panel, Snap in, Cable
Number of Contacts
5
Number of Positions
5
Number of Rows
1
Operating Supply Voltage
250V
Orientation
Straight
Package Quantity
5
Packaging
Bulk
Pitch
3.68mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
1625
Termination
Crimp
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Molex 03-06-1055 Datasheet
Download the complete datasheet for Molex 03-06-1055 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

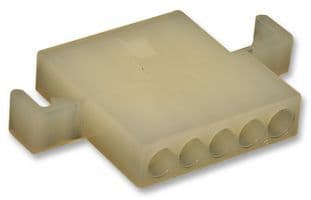

Product Images
