RF MMCX receptacle connector for board mounting. Features a brass body with gold plating and copper contacts also plated in gold. Offers 50 Ohm impedance and a polytetrafluoroethylene insulator. Termination is via solder, with dimensions of 6.49mm length and 3.5mm depth. This component is RoHS and REACH compliant.
Quick Jump:
Technical Specifications
Molex 0734151001 technical specifications.
General
Body Material
Brass
Body Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Depth
3.5mm
Impedance
50R
Insulation Material
Polytetrafluoroethylene
Length
6.49mm
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Molex 0734151001 Datasheet
Download the complete datasheet for Molex 0734151001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

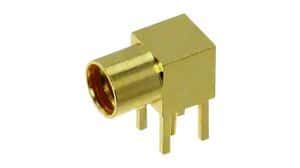

Product Images
