RF MCX connector, female, straight orientation, board mount receptacle with surface mount terminal. Features 50 Ohm impedance, 6GHz max frequency, and a 335V voltage rating. Constructed with a brass body and copper contacts, both plated in gold for superior conductivity. Dielectric is PTFE, and the component operates within a temperature range of -55°C to 155°C. RoHS and REACH compliant, packaged on tape and reel.
Frequency6GHz
Voltage Rating335V
MountingSurface Mount
Quick Jump:
Technical Specifications
Molex 0734151692 technical specifications.
General
Body Material
Brass
Body Plating
Gold
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Depth
5.9mm
Dielectric Material
PTFE
Housing Color
Gold
Impedance
50R
Insulation Material
Polytetrafluoroethylene
Length
5.9mm
Max Frequency
6GHz
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Orientation
Straight
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
73415
Termination
Solder
Voltage Rating
335V
Compliance
RoHS
Compliant
Datasheet
Molex 0734151692 Datasheet
Download the complete datasheet for Molex 0734151692 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

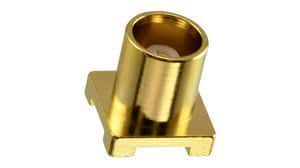

Product Images
