Female pin header, designed for board-to-board and mezzanine applications. Features straight orientation with a 2.54mm pitch and crimp termination. Constructed with phosphor bronze contacts, plated in tin, supporting wire sizes from 30 to 22 AWG. Offers a current rating of up to 4A and a voltage rating of 250V. Dimensions include a 2.1mm depth, 3.76mm height, and 9.7mm length. RoHS compliant and lead-free.
Voltage Rating250V
Current Rating3A
MountingCable
Quick Jump:
Technical Specifications
Molex 08-52-0123 technical specifications.
General
Contact Gender
Female
Contact Material
Bronze, Brass
Contact Plating
Tin, Bronze
Contact Type
Signal
Current Rating
3A
Depth
2.1mm
Gender
Female
Height
3.76mm
Lead Free
Lead Free
Length
9.7mm
Max Current Rating
4A
Max Operating Temperature
75°C
Min Operating Temperature
0°C
Mount
Cable
Number of Contacts
1
Orientation
Straight
Package Quantity
2000
Packaging
Bulk
Pitch
2.54mm
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
KK® 6459
Shielding
Unshielded
Termination
Crimp
Voltage Rating
250V
DC Rated Voltage
250V
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
30AWG
Wire/Cable Gauge
22AWG
Compliance
RoHS
Compliant
Datasheet
Molex 08-52-0123 Datasheet
Download the complete datasheet for Molex 08-52-0123 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

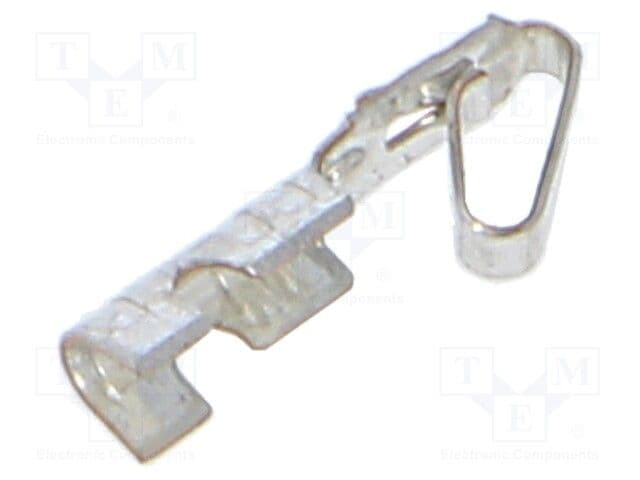

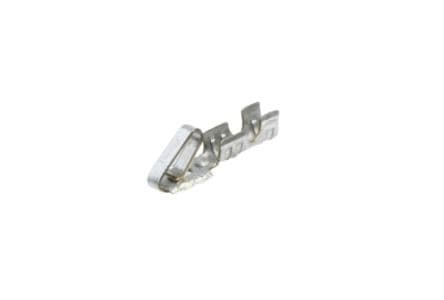

Product Images
