MOLEX

09-50-3061

Datasheet

6 Pos Female Header, 1 Row, 3.96mm Pitch, Crimp, 250V

Molex

09-50-3061

Name: 09-50-3061 Molex
Brand: Molex
SKU: 09-50-3061

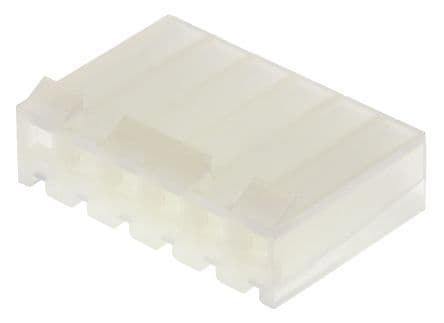

6 Pos Female Header, 1 Row, 3.96mm Pitch, Crimp, 250V

6-contact, single-row female receptacle with a 3.96mm pitch. Features straight, cable/PCB mount orientation and a crimp termination for socket contacts. Rated for 250V AC and 5A, with a natural nylon housing and a UL94 V-2 flammability rating. Approvals include UL and CSA, with RoHS compliance.

Current Rating5A

MountingCable, PCB

Quick Jump:

Technical Specifications

Molex 09-50-3061 technical specifications.

General

Approvals	UL, CSA
Color	Natural
Contact Gender	Female
Contact Material	Bronze, Brass
Contact Type	Socket
Current Rating	5A
Depth	15.88mm
Flammability Rating	UL94 V-2
Gender	Receptacle
Housing Color	Natural
Lead Free	Lead Free
Length	23.67mm
Material	Nylon
Max Operating Temperature	75°C
Min Operating Temperature	0°C
Mount	Cable, PCB
Number of Contacts	6
Number of Positions	6
Number of Rows	1
Orientation	Straight
Package Quantity	1000
Packaging	Bulk
Pitch	3.96mm
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	2139
Termination	Crimp
Voltage Rating (AC)	250V
Width	6.4mm
