Two-position, single-row connector housing with a 3.96mm pitch, designed for free-hanging or cable mounting. Features a straight, non-gendered contact orientation and crimp termination. Constructed from UL94 V-2 rated Nylon/Polyamide in a natural color, with bronze/brass contacts. Rated for 250V AC, operating between 0°C and 75°C, and is RoHS compliant.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Molex 09-50-7021 technical specifications.
General
Approvals
UL, CSA
Body Material
Nylon, Polyamide
Color
Natural
Contact Material
Bronze, Brass
Contact Type
Non Gendered
Depth
15.88mm
Flammability Rating
UL94 V-2
Gender
Female
Housing Color
Natural
Lead Free
Lead Free
Length
7.82mm
Max Operating Temperature
75°C
Min Operating Temperature
0°C
Max Voltage Rating (AC)
250V
Mount
Free Hanging, Cable
Number of Contacts
2
Number of Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
3.96mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
KK® 2139
Termination
Crimp
Voltage Rating (AC)
250V
Width
6.4mm
Compliance
RoHS
Compliant
Datasheet
Molex 09-50-7021 Datasheet
Download the complete datasheet for Molex 09-50-7021 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

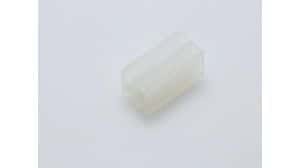

Product Images
