09-65-2048

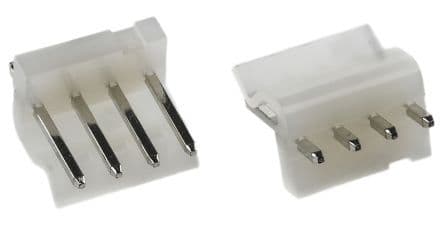

4 Pos 1 Row Straight Male Header, 3.96mm Pitch, 7A, 250V

4-contact, 1-row male header connector with straight, through-hole termination and a 3.96mm pitch. Features brass/bronze contacts with tin/copper plating, rated for 7A current and 250V voltage. The natural colored, UL94 V-2 flammability rated insulator has a depth of 2.29mm, height of 2.03mm, and length of 12.88mm. Operating temperature range is -40°C to 105°C, with lead-free and RoHS compliance.

Voltage Rating250V

Current Rating7A

MountingThrough Hole, Cable

Quick Jump:

Technical Specifications

Molex 09-65-2048 technical specifications.

General

Contact Gender	Male
Contact Material	Brass, Bronze
Contact Plating	Tin, Copper
Current Rating	7A
Depth	2.29mm
Flammability Rating	UL94 V-2
Gender	Male
Glow Wire Compliant	Non-compliant
Height	2.03mm
Housing Color	Natural
Lead Free	Lead Free
Length	12.88mm
Max Current Rating	3A
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	250V
Mount	Through Hole, Cable
Number of Contacts	4
Number of Positions	4
Number of Rows	1
Orientation	Straight
Package Quantity	6000
Packaging	Bulk
Pitch	3.96mm
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	5273
Termination	Through Hole
Voltage Rating	250V
DC Rated Voltage	250V
