7-circuit, 3.96mm pitch wire-to-board header with a straight, vertical orientation. Features brass contacts with tin/copper plating, rated for 7A current and 250V AC/DC. This male header utilizes through-hole mounting and solder termination, with a UL94 V-0 flammability rating and a maximum operating temperature of 105°C. Housing is natural colored and lead-free, with a depth of 10.75mm.
Voltage Rating250V
Current Rating7A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 09-65-2078 technical specifications.
General
| Contact Material | Brass |
| Contact Plating | Tin, Copper |
| Current Rating | 7A |
| Depth | 10.75mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole |
| Number of Contacts | 7 |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Pitch | 3.96mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 5273 |
| Termination | Solder |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 09-65-2078 Datasheet
Download the complete datasheet for Molex 09-65-2078 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

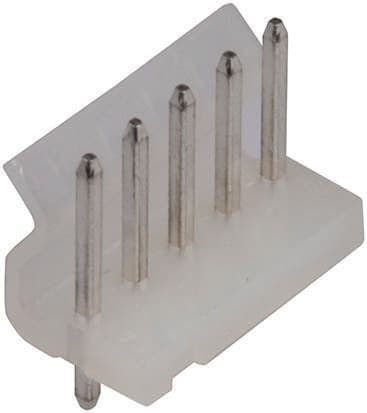

Product Images
