10-position, single-row male header connector with a 5.08mm pitch. Features brass male pin contacts with tin/copper plating and a 4.45mm lead length. Rated for 7A current and 250V AC voltage, with a maximum operating temperature of 75°C. Through-hole mounting with a straight orientation and a natural housing color.
Voltage Rating250V
Current Rating7A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 10-08-5101 technical specifications.
General
| Color | Natural |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Mating Length | 0.45inch |
| Contact Plating | Tin, Copper |
| Contact Post Length | 4.45mm |
| Contact Type | Male Pin |
| Current Rating | 7A |
| Depth | 6.35mm |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Natural |
| Lead Length | 4.45mm |
| Length | 48.72mm |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole |
| Number of Circuits | 10 |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 5.08mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | KK® 2599 |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 10-08-5101 Datasheet
Download the complete datasheet for Molex 10-08-5101 to view detailed technical specifications.
No datasheet is available for this part.

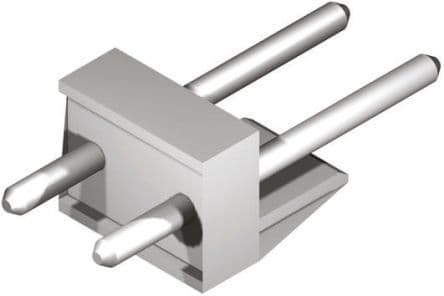

Product Images
