Technical Specifications
Molex 10-10-1023 technical specifications.
General
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Contact Post Length | 2.79mm |
| Current Rating | 7A |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Halogen Free | Low Halogen |
| Mount | Through Hole |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 2340 |
| Packaging | Tray |
| Pitch | 5.08mm |
| RoHS Compliant | Yes |
| Series | 3002 |
| Termination | Through Hole |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 10-10-1023 Datasheet
Download the complete datasheet for Molex 10-10-1023 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

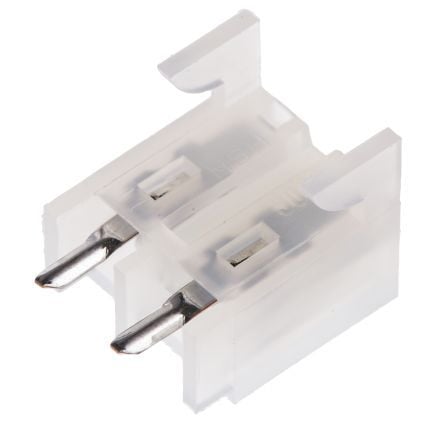

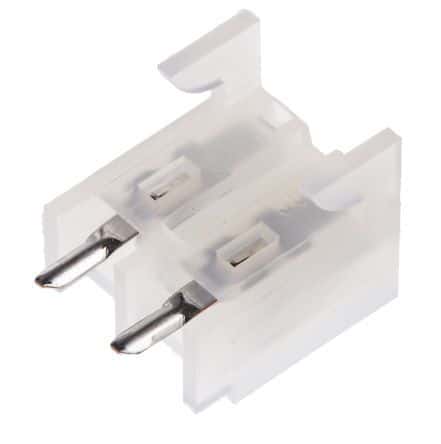

Product Images
